- Oil Drain Valve - Positioned at the bottom of the oil reservoir and angled for faster, more complete draining;
- Oil Fill Port - Makes adding oil simple since the port is accessible from the front or either side;
- The sight glass on the front of the pump shows you when enough oil has been added;
- Heavy-Duty Motor
- Two Stages.
Short Description

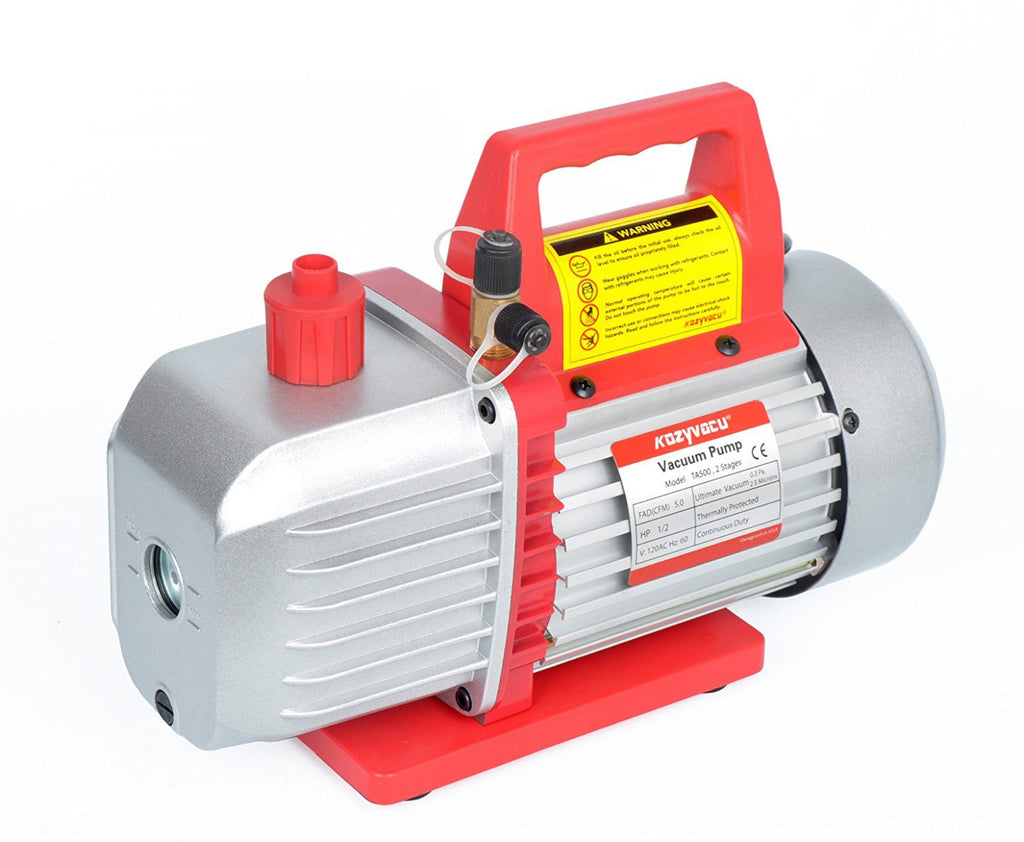

The Kozyvacu® TA500 has been performance and relibility tested to meet Kozyvacu's high standards. Its power and capacity meets for a wide range of service applications, it delivers a high CFM rating for fast thorough evacuation.
- Oil Drain Valve - Positioned at the bottom of the oil reservoir and angled for faster, more complete draining;
- Oil Fill Port - Makes adding oil simple since the port is accessible from the front or either side;
- The sight glass on the front of the pump shows you when enough oil has been added;
- Heavy-Duty Motor
- Two Stages.
Product Features
Product Description
The Kozyvacu® TA500 has been performance and reliability tested to meet Kozyvacu's high standards. Its power and capacity meets for a wide range of service applications, it delivers a high CFM rating for fast thorough evacuation. Features:
- High torque design for easy startup and efficient operation; and a Die-Cast Aluminum Housing – Cast aluminum housings make the pumps lightweight while durable. it is easy to start and maintenance free.

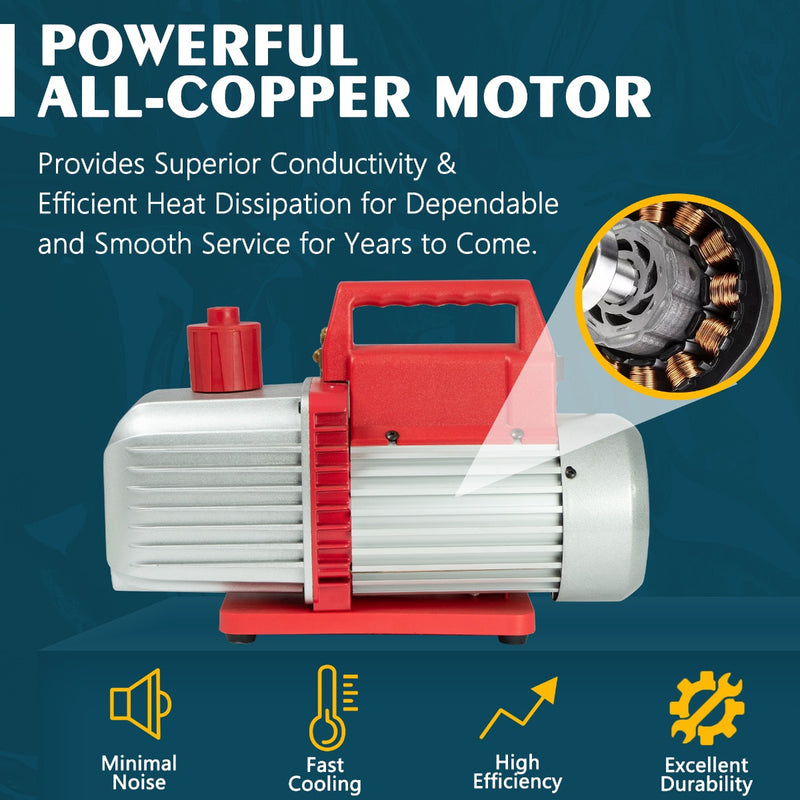

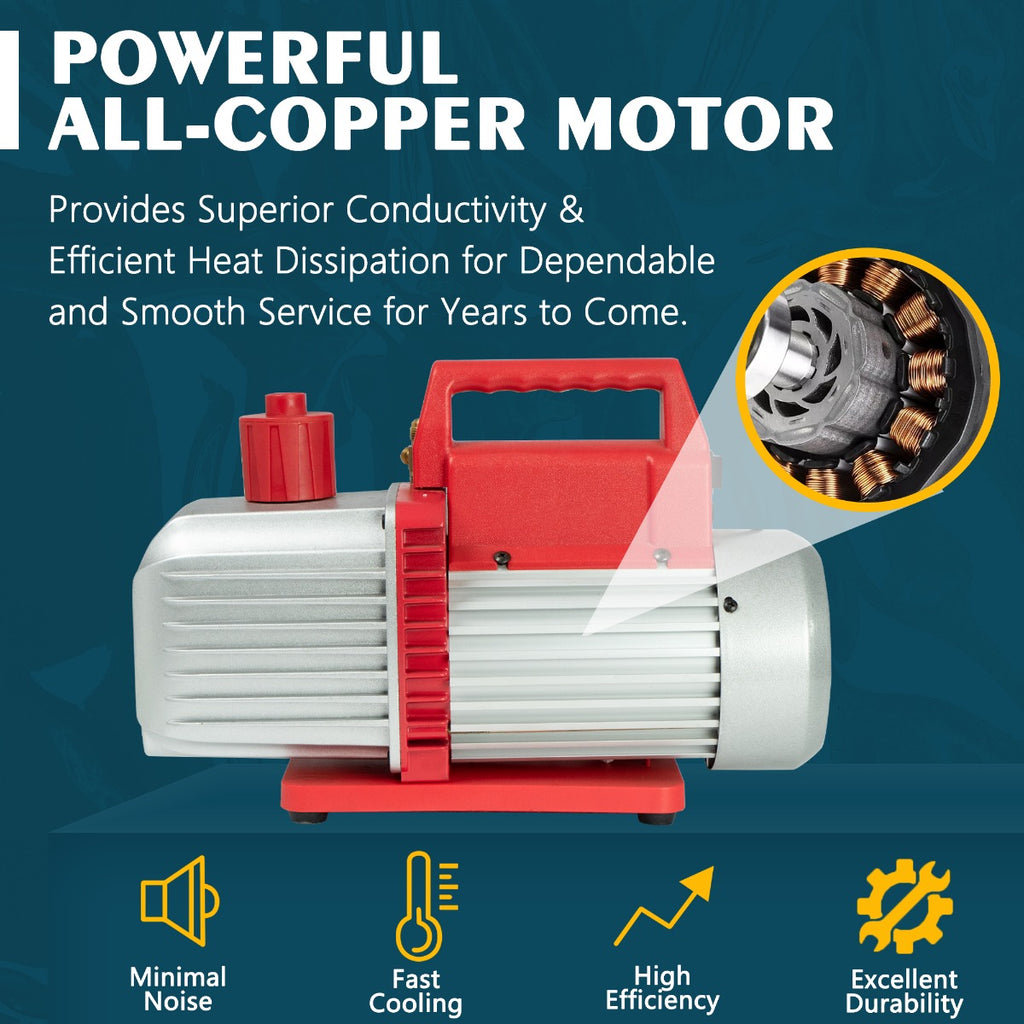

- Thermally protected motor to make it durable for long time duty.
- Oil Drain Valve – Positioned at the bottom of the oil reservoir and angled for faster, more complete draining;

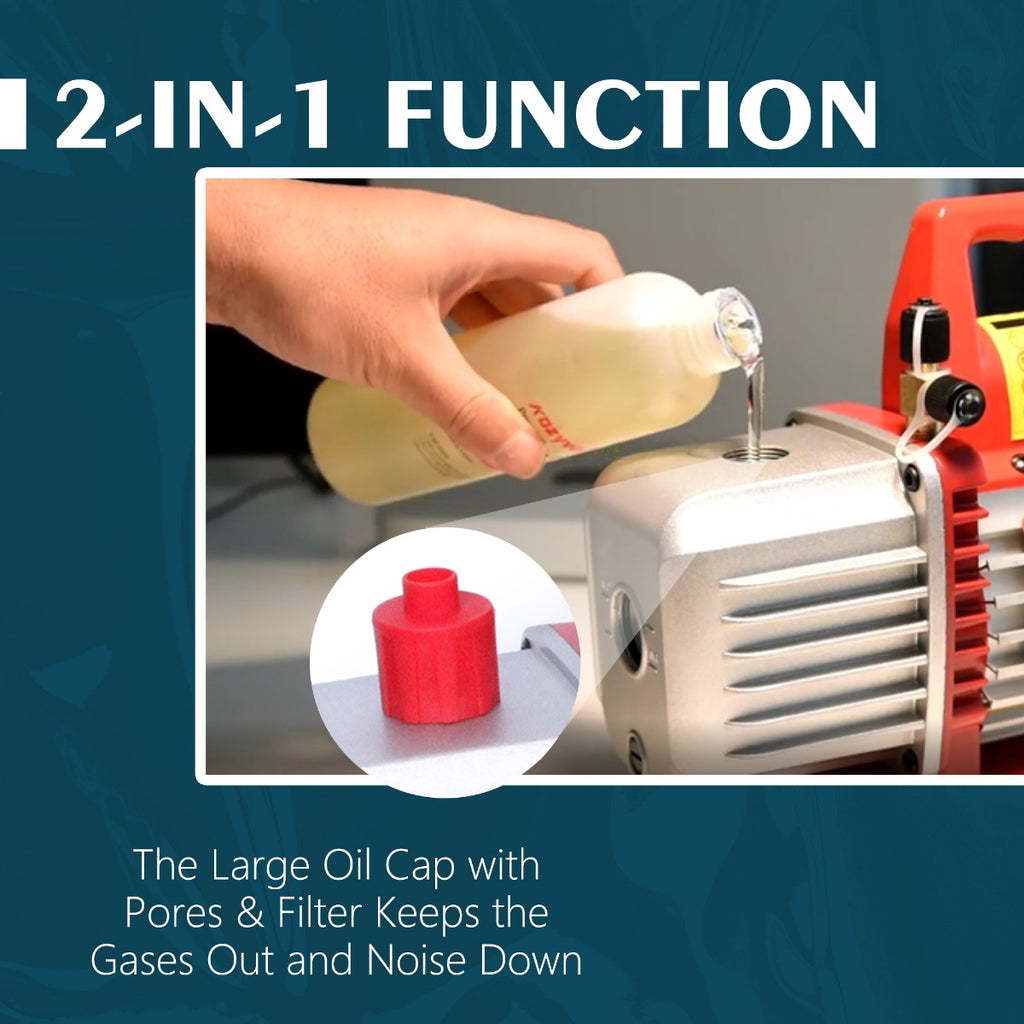

- Oil Fill Port – Makes adding oil simple since the port is accessible from the front or either side.

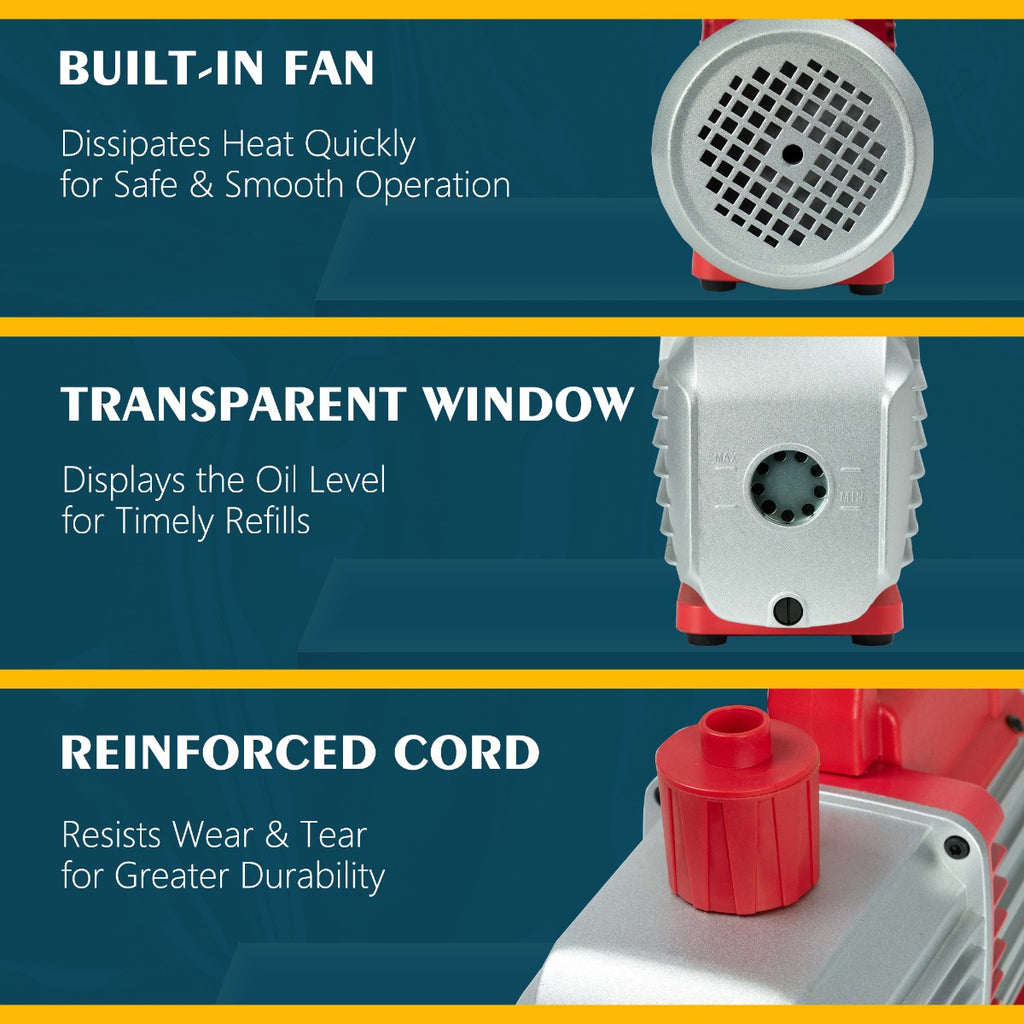

- The sight glass on the front of the pump shows you when enough oil has been added;
- High Efficiency and Low Noise
- ON/OFF Switch Non Slip Cushion Handle
- Foam molded packing for safe transportion.

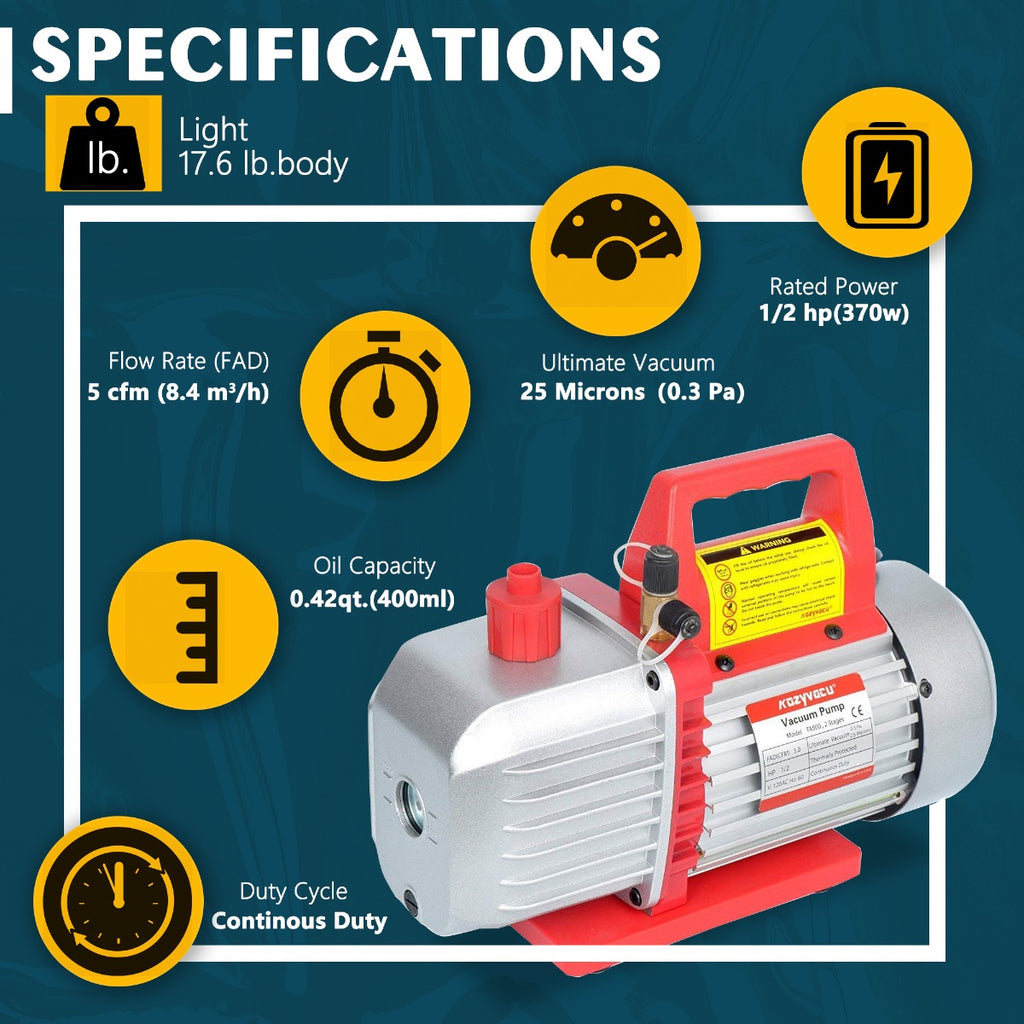

- Free Air Displacement(FAD): 5.0CFM
- Power: 1/2 HP
- Stage: 2
- Voltage/Frequency: 120V/60HZ
- Ultimate Vacuum: 0.3 PA

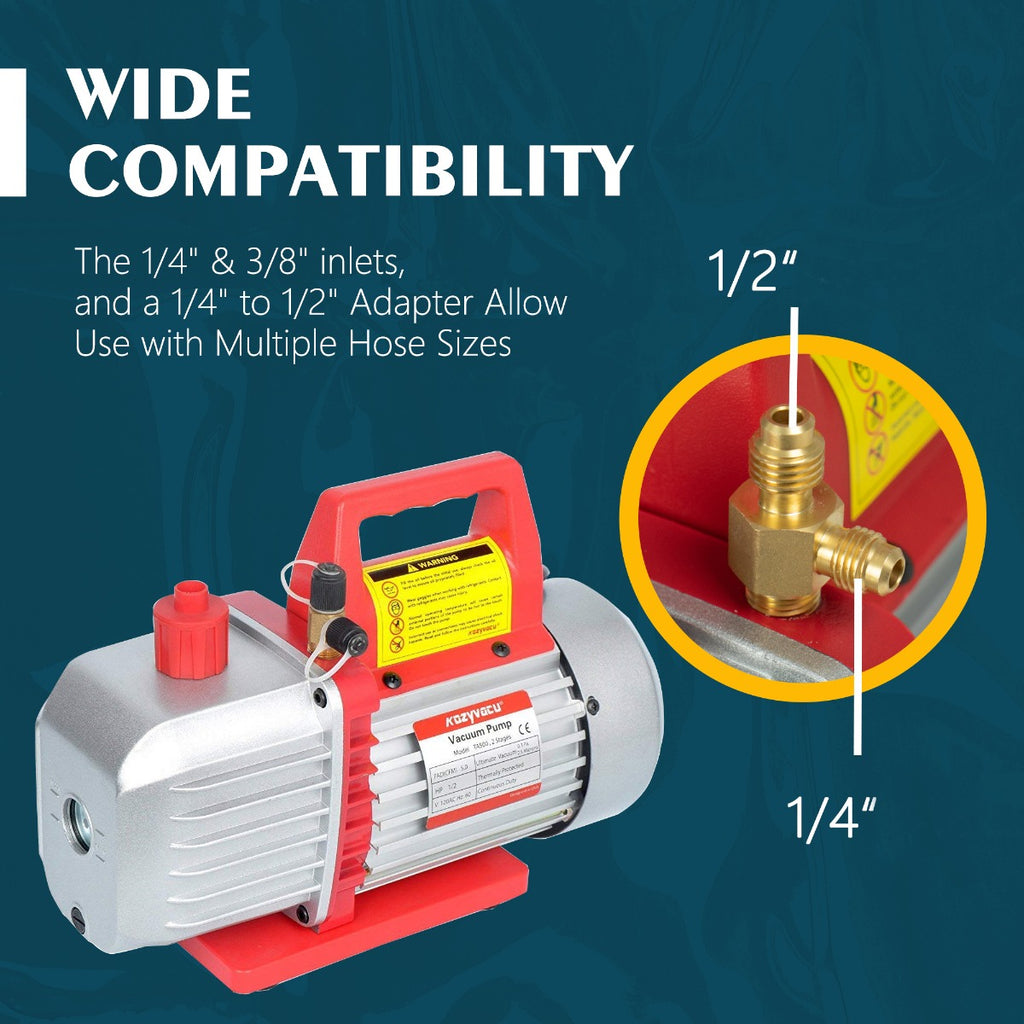

- 1/4 inch flare female x 1/2 inch Acme male
- Oil Reservoir Capacity: 380ML
- Net dimension and weight is 12.6x5.3x9.2 inches, 19.0pounds,
- Shipping dimension and weight is 14.2x7.1x11.4 inches, 21.0pounds
- 1 x Kozyvacu TA 500 Vacuum Pump
- 1 x 380ml White Oil Bottle Filled With Oil.
- 1 x User Manual
